Thermoforming
Plasticpartsmfg delivers custom heavy-gauge vacuum forming, precision pressure forming, and twin-sheet thermoforming services from Shenzhen, China. Designed for product engineers, equipment builders, and procurement teams requiring large-format enclosures, protective covers, and structural housings without the high tooling cost of standard injection molding.
Rapid Engineering Verification
- Supported Materials: ABS, PC, HDPE, HIPS, PMMA, PETG, PVC, Conductive & Flame Retardant Grades (UL94-V0).
- Tooling Types: Fast polyurethane/resin tooling for prototypes, cast/billet aluminum tooling for production runs.
- Secondary Processing: 5-axis CNC routing, robotic trimming, ultrasonic welding, silk screening, and sub-assembly.
- Batch Flexibility: 10 to 5,000+ pieces with short tooling lead times (7-15 working days).
Thermoforming Technical Capabilities
Engineered for cost-efficient production of large-scale parts with rigorous dimensional stability and cosmetic finish requirements.
Cost-Efficient Tooling
Tooling investment is typically 70% to 90% lower than injection molding molds. Aluminum or epoxy tools deliver reliable part geometry for small-to-mid size batches without massive upfront CapEx.
Large-Format Geometries
Produce monolithic housings, vehicle dashboards, medical diagnostic consoles, and agricultural covers up to 2500mm x 1500mm without complex assembly seams or weak weld lines.
5-Axis Post Trimming
High-precision multi-axis CNC routers trim cutouts, perimeter edges, mounting slots, and fastener points with repeat accuracy of ±0.2mm for seamless mechanical assembly.
Thermoforming Manufacturing Workflow
From CAD evaluation to final inspection, our engineered timeline ensures tight control over wall thickness distribution, surface texture, and trimming tolerances.
DFM Review & Draw Ratio Simulation
Our engineering team analyzes your 3D CAD models (STEP/IGES) for draft angles (minimum 2° to 5° recommended), depth-of-draw ratios, and localized thinning risks before cutting tooling.
Rapid Aluminum or Composite Tooling
We machine molds from cast aluminum billets or specialized temperature-resistant polyurethane resin with integrated vacuum ports and heating channels to guarantee uniform heat transfer.
Sheet Heating, Forming & Pressure Assist
Extruded plastic sheets (ABS, PC, HIPS, HDPE) are clamped and heated via infrared ceramic heaters to optimal forming temperature, then formed against the mold via high-volume vacuum or pressure assist.
Multi-Axis CNC Trimming & Feature Routing
Parts are transferred directly onto vacuum holding fixtures where 5-axis CNC routers trim scrap margins, drill mounting holes, and mill ventilation slots with precision.
Inspection, Assembly & Secure Export Packing
Each component undergoes full dimensional verification, cosmetic surface audit, ultrasonic threaded insert installation, custom foam nesting, and export-grade wooden crate packing.
Submit Project Specifications
Have existing CAD models or an ongoing equipment project? Proceed to submit your RFQ below.
Thermoforming Process Categories & Methods
Browse specialized thermoforming techniques supported by Plasticpartsmfg for enclosures, trays, panels, and structural covers.

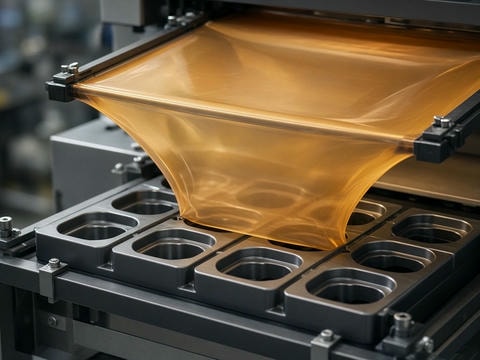

Custom Vacuum Forming Services in China | Plasticpartsmfg
Plasticpartsmfg provides custom vacuum, pressure, and twin-sheet forming for industrial parts. Prototype to medium-volume production. Upload your files for a quote.
View details →

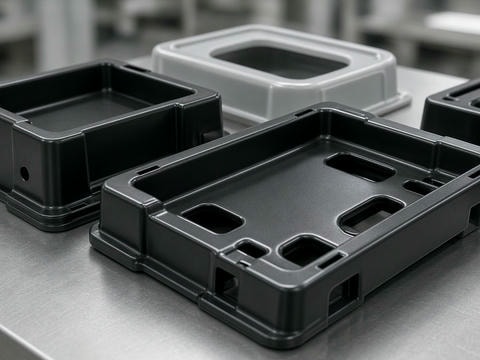

Custom Pressure Forming Services | Plasticpartsmfg
Professional pressure forming services for medium-to-large plastic components. Rapid prototyping to medium-volume production with tight tolerances. Get a quote today.
View details →

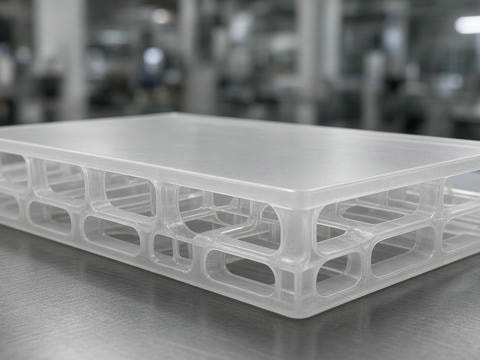

Twin Sheet Forming Services | Custom Plastic Parts Manufacturer | Plasticpartsmfg
Plasticpartsmfg offers precision twin sheet forming for hollow, high-strength plastic components. Ideal for automotive, HVAC, and industrial applications. Upload your CAD files for a quote.
View details →

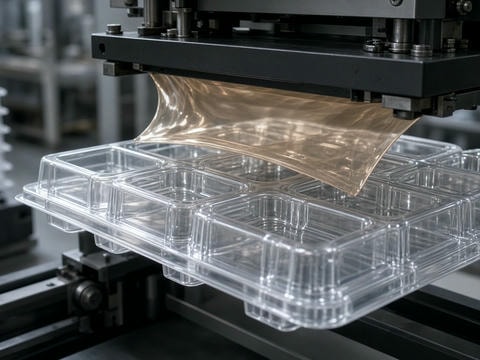

Custom Plastic Sheet Forming Services | Vacuum & Pressure Forming - Plasticpartsmfg
Plasticpartsmfg provides custom plastic sheet forming for housings, enclosures, and large components. From prototyping to medium-volume production. Upload your files for a quote.
View details →Request Your Thermoforming Quotation
Upload your 3D CAD files (STEP, IGES, STL) or 2D dimensioned PDF drawings. Our engineering team in Shenzhen will evaluate part draft, draw depth, and sheet gauge to provide a DFM assessment and quotation within 24 hours.
