Custom PA Injection Molding Services
Plasticpartsmfg provides custom PA (polyamide/nylon) injection molding services in Shenzhen, China. We support product developers and engineering teams throughout the entire product lifecycle, from initial prototype tooling and bridge production to full-scale manufacturing.
Our facility processes unreinforced, glass-filled, and flame-retardant PA grades, ensuring your components achieve the required mechanical endurance, chemical resilience, and thermal stability.
PA Material Selection & Properties
Polyamide (PA), commonly known as nylon, is a versatile engineering thermoplastic favored for high mechanical strength, wear resistance, and thermal stability. Compare our primary molding grades below.
PA6 (Nylon 6)
Known for good impact strength, damping properties, and ease of processing. An economical choice for general-purpose industrial housings and components.
PA66 (Nylon 66)
Delivers higher melting points, elevated stiffness, and superior wear resistance compared to PA6, making it optimal for continuous friction and heat.
Glass-Filled PA (GF)
Processed with 15% to 50% glass-fiber reinforcement. Drastically increases tensile modulus, creep resistance, and dimensional stability under load.
Impact-Modified PA
Specially elastomer-modified for high-stress operating environments where low-temperature fracture resistance and toughness are critical.
Technical Capabilities & Precision Parameters
Our manufacturing facility is equipped to handle complex part geometries, differential wall thicknesses, and strict tolerance requirements. We deploy hydraulic and high-precision electric injection molding machines matching both low-volume pilot runs and continuous high-volume contracts.
From rapid aluminum and pre-hardened P20/NAK80 tooling for bridge runs to hardened H13/S136 steel for high-wear glass-filled PA mass production.
Dedicated pre-drying desiccant systems and post-molding moisture conditioning chambers to achieve specified equilibrium impact and tensile strengths.
| Capability | Typical Range |
|---|---|
| Processes | Standard Injection, Insert Molding, Overmolding, 2K Molding |
| Machine Tonnage | 50–650 tons |
| Typical Tolerance | ±0.05–0.20 mm |
| Production Volume | Hundreds (pilot runs) to millions of parts |
| Tooling Materials | Aluminum, P20, NAK80, H13, and specialty tool steels |
| Secondary Services | Texture (SPI/VDI), polishing, printing, painting, assembly |

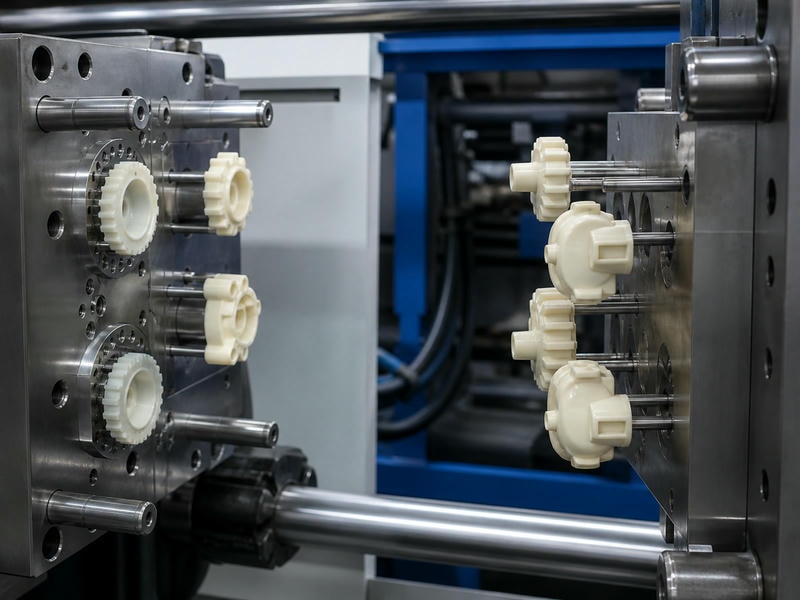

Specialized Molding Techniques for PA
Beyond standard single-cavity injection molding, Plasticpartsmfg provides advanced integration processes to pair PA with metals and elastomers.
1. Insert Molding
We mold PA around metal inserts such as threaded brass bushings, steel guide pins, or stamped electrical contacts. This eliminates secondary assembly labor, providing exceptional pull-out torque resistance and reliable structural integrity.
2. Overmolding
We bond rigid PA structural cores with soft-touch elastomers (TPE/TPU). Ideal for ergonomic handles, power tools, water-resistant enclosures, and sealing gaskets that require internal stiffness paired with external grip or cushioning.
3. Two-Shot (2K) Molding
For components requiring two distinct resin formulations or contrasting colors in one processing cycle, our 2K machines deliver rapid cycle times, superior chemical bonding, and zero secondary handling overhead.
Structured Manufacturing Workflow
From initial digital models to shipment, our engineering steps reduce lead time and prevent costly tooling adjustments.
DFM Analysis
Comprehensive review of CAD models evaluating draft angles, wall uniformity, sink risk, weld line placement, and gating strategy for nylon flow.
Tooling Development
Precision in-house CNC machining, EDM, and wire-cut tool construction utilizing selected tool steels tailored to part volume and resin abrasiveness.
Sampling & Validation
First-article inspection and T1 samples delivered with complete CMM dimensional reports and material certification for customer functional testing.
Production & QC
Scalable injection molding runs monitored by in-process SPC checks, routine tensile/dimensional verification, and batch packaging controls.
Typical Industry Applications
Our molded polyamide parts serve high-reliability sectors requiring low coefficient of friction, high thermal resistance, and chemical stability.
Industrial Equipment
Gears, bushings, rollers, pulleys, and structural housings demanding continuous wear resistance and high mechanical strength.
Automotive Subsystems
Engine covers, wire connectors, brackets, fluid reservoirs, and under-the-hood components with oil and heat resistance.
Electronics & Electrical
Flame-retardant insulating housings, switch bodies, terminal blocks, and precision connector housings.
Consumer & Commercial
Power tool shells, ergonomic handles, luggage structural frames, and heavy-duty mechanical assemblies.
Secondary Services & Assembly
We provide turn-key post-molding finishing and fulfillment to supply ready-to-use assemblies straight into your inventory.
Surface Finishing
SPI polishing, Mold-Tech textures, high-gloss surface treatments, and UV-resistant painting.
Part Marking
Single and multi-color pad printing, silk screen labeling, laser etching of serialized QR codes and part numbers.
Mechanical Assembly
Ultrasonic welding, heat staking of metal inserts, press-fit pins, and multi-component sub-assembly.
Custom Packaging
Anti-static packaging, bulk protective cartons, barcoding, and retail-ready packaging per specification.
Request a Quote for Your PA Parts
Plasticpartsmfg is ready to assist with your next PA injection molding project. Send your CAD files to our engineering team for a detailed quotation and manufacturability feedback.
- 3D CAD files (STEP, IGS, or STL)
- 2D technical drawings for critical tolerances
- Material grade (e.g. PA6, PA66, 30% GF)
- Expected order quantity and annual volume
- Finishing and assembly requirements
Direct Engineering Inquiry
Submit your part specifications below. We provide feedback within 24 business hours.
