PBT Injection Molding Services
Plasticpartsmfg provides custom PBT (Polybutylene Terephthalate) injection molding services for industrial, automotive, and electronic applications. Based in Shenzhen, China, we support the entire manufacturing lifecycle, from initial mold development and material selection to scalable production and secondary assembly.
We work directly with product engineers and procurement teams to transform complex CAD designs into functional, high-tolerance PBT components. Whether you require standard PBT, glass-filled PBT for structural rigidity, or flame-retardant grades, we provide full technical support to guarantee manufacturing success.
PBT Manufacturing Capabilities
Our facility utilizes injection molding presses ranging from 50 to 650 tons, accommodating both intricate connector housings and heavy-duty structural parts.
| Feature | Specification & Range |
|---|---|
| Material Grades | PBT (Unfilled, 10-30% Glass-filled, Flame-retardant UL94 V-0) |
| Machine Tonnage | 50 to 650 Tons (Micro-molding to medium industrial scale) |
| Typical Tolerance | ±0.05 mm to ±0.20 mm depending on part geometry & filler |
| Mold Materials | P20, NAK80, H13, and hardened tool steels |
| Production Volume | Rapid prototyping, bridge tooling, to multi-cavity mass production |
| Secondary Operations | Pad printing, painting, mechanical assembly, ultrasonic welding |

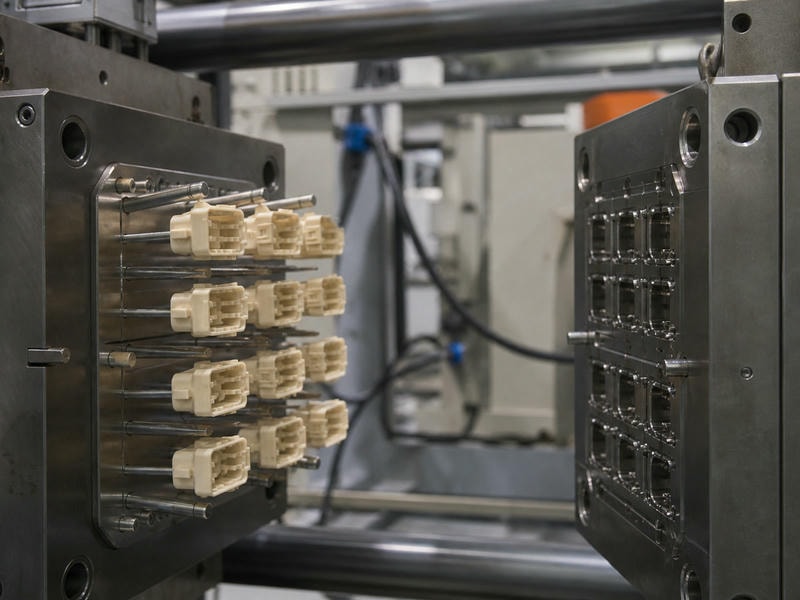

Tooling Longevity & Precision
In-house CNC machining, EDM, and wire-cutting ensure optimal gate placement, cooling uniformity, and high surface finish for glass-reinforced PBT formulations.
Technical Considerations for PBT Parts
PBT is a high-performance semi-crystalline engineering thermoplastic renowned for electrical insulation and chemical resilience. Our engineering team addresses its unique molding dynamics directly during DFM.
Shrinkage & Warpage Control
PBT exhibits anisotropic shrinkage rates, especially with glass-filled grades. We optimize gate locations, thermal runner profiles, and conformal cooling circuits to balance shrinkage and eliminate warpage across critical dimensions.
Uniform Wall Thickness
Abrupt wall transitions invite sink marks and internal voids in crystalline polymers. We conduct thorough Design for Manufacturing (DFM) reviews on your 3D models to core out thick sections and ensure balanced cooling.
Melt Flow & Toughness Selection
PBT provides low melt viscosity suitable for thin-walled connectors and housings. We assist in matching resin grades to your required heat deflection temperature (HDT), dielectric strength, and mechanical toughness.
Structured Production Workflow
A predictable, milestone-driven protocol designed to minimize mold lead time, control tool wear, and ensure zero-defect shipment.
DFM & CAD Review
In-depth evaluation of STEP or STL data covering draft angles, parting lines, and gate strategies.
Tooling Development
High-speed CNC, EDM, and fitting using P20, NAK80, or hardened H13 core and cavity steels.
T1 Sampling
Submission of physical T1 samples with complete CMM measurement reports for client approval.
Mass Production
Scalable injection cycling with automated de-gating, desiccated material drying, and process tracking.
Quality & Logistics
Final visual checks, dimensional validation, protective packaging, and on-time global dispatch.
Secondary Finishing & Assembly
Streamline your supply chain with our integrated downstream capabilities. Plasticpartsmfg delivers fully finished, tested assemblies ready for direct integration.
Surface Finishing
Mold-tech texturing, high polishing, specialty coatings, pad printing, and silk screening for clear part markings.
Mechanical Assembly
High-reliability ultrasonic welding, thermal heat staking, and precision press-fitting for multi-part subassemblies.
Insert Integration
Insert overmolding and post-mold installation of threaded brass inserts, conductive pins, and terminal contacts.
Custom Packaging
Anti-static packaging, precision compartmentalized blister trays, and bulk export-ready boxing.
Key Industry Applications
Our molded PBT parts deliver extreme dimensional stability, high heat endurance, and chemical isolation across demanding sectors.
Automotive
Sensor housings, electrical connectors, ignition components, wiper brackets, and exterior handle mechanisms.
Electrical & Electronics
Miniature circuit breakers, switch housings, relays, terminal blocks, and high-density cable connectors.
Industrial Equipment
Corrosion-resistant pump impellers, heavy-duty valve bodies, gears, and structural brackets.
Consumer Goods
Small appliance motor housings, high-temperature iron handles, and food-grade durable hardware.
Request a Project Quotation
Submit your 3D CAD files (STEP, IGES, or STL) and 2D technical drawings for a rapid engineering review. Our tooling team provides a comprehensive DFM assessment alongside transparent tooling and part pricing.
