Plastic Extrusion Molding Services
Plasticpartsmfg engineers custom plastic profiles, solid rods, precision tubing, sheets, and co-extruded assemblies based in Shenzhen, China. From custom extrusion die fabrication to continuous batch production, we support product engineers, industrial OEMs, and procurement specialists with drawing-specified tolerances, stable linear dimensions, and complete post-extrusion fabrication.
Extrusion Processing Benchmarks
- Cross-Sectional Tolerances
- Down to ±0.10 mm (±0.004 in)
- Supported Polymers
- PVC, HDPE, PP, PC, ABS, PMMA, TPU
- Secondary Fabrication
- Punching, Slotting, In-line Taping, CNC Cut
- Production Quantities
- 500 m pilot runs to full volume
- Drawing Formats Accepted
- STEP, STP, DXF, DWG, PDF
Engineering Capabilities & Die Tooling
Plasticpartsmfg manages the entire extrusion chain under rigorous quality control: from wire-EDM extrusion die fabrication and sizing calibrator design to dual-durometer co-extrusion and post-cut fabrication.
Custom Extrusion Die Tooling
Precision EDM-cut dies, vacuum sizing calibrators, and cooling tanks tuned to specific resin shrinkage and flow dynamics to prevent warpage and wall thickness variance.
- • In-house DFM review before steel cutting
- • Hardened tool steel for wear resistance
- • Die trial sample submission with CMM reports
Dual & Multi-Material Co-Extrusion
Seamlessly unite rigid structural backings with flexible sealing lips, multi-color indicators, or UV-resistant cap layers in a single, un-delaminated continuous profile.
- • Rigid PVC + Flexible PVC combinations
- • Polypropylene (PP) + Santoprene / TPE seals
- • Acrylic / PC clear caps with matte diffusers
Downstream In-Line Operations
Eliminate manual post-processing costs. Our extrusion lines integrate precision automated cutting, online rotary punching, adhesive tape lamination, and batch markings.
- • Automatic high-speed guillotine & saw cutting
- • In-line pressure-sensitive adhesive (PSA) taping
- • Consecutive part numbering & laser coding
Extrusion Solutions & Category Index
Review our specialized profile, tubing, sheet, and co-extrusion solutions below. Each profile group features custom material formulations, sizing tolerances, and production capabilities.

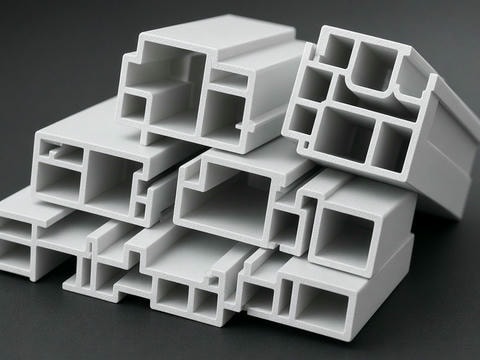

Custom Plastic Profile Extrusion Manufacturing | Plasticpartsmfg
Get precise plastic profile extrusion for your industrial and commercial projects. Plasticpartsmfg offers custom tooling, material selection, and volume production.
View details →

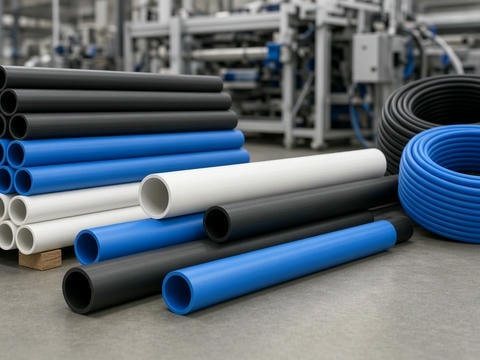

Custom Plastic Tube Extrusion Services | Plasticpartsmfg
Get precise custom plastic tube extrusion services from Plasticpartsmfg. We support prototyping to mass production for industrial, medical, and consumer applications. Request a quote.
View details →

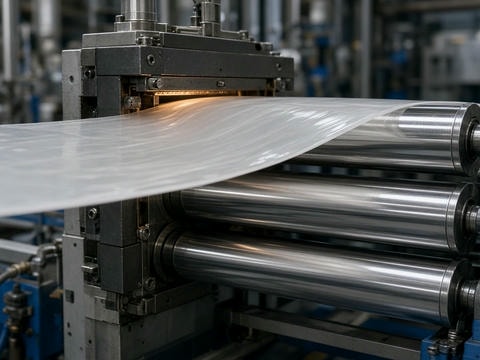

Custom Plastic Sheet Extrusion Services | Plasticpartsmfg
Plasticpartsmfg provides precision plastic sheet extrusion services in Shenzhen. Get custom thickness, width, and material specifications for your industrial projects.
View details →

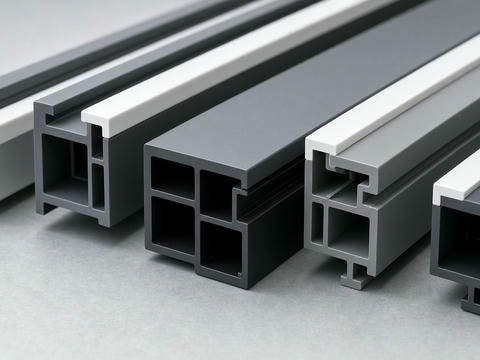

Custom Co-Extrusion Manufacturing Services | Plasticpartsmfg
Plasticpartsmfg provides precision custom co-extrusion manufacturing for multi-material plastic profiles. Send your drawings for a fast project quotation.
View details →

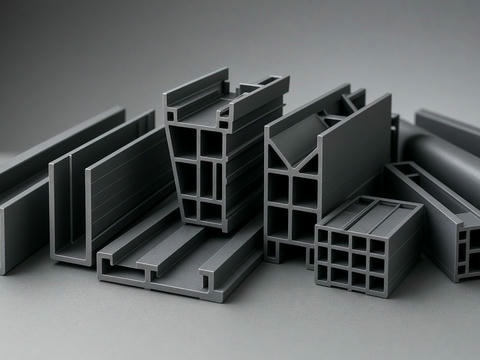

Custom Plastic Extrusion Services | Plasticpartsmfg
Get reliable custom plastic extrusion manufacturing from Plasticpartsmfg in Shenzhen. We support prototyping to mass production. Send your drawings for a quote.
View details →Common Extrusion Polymers & Properties
Material selection directly governs extrusion melt flow, surface finish, UV resistance, and profile rigidity. We process both utility resins and high-performance engineering thermoplastics:
| Resin Grade | Key Mechanical Characteristics | Standard Applications | Linear Tolerance Band |
|---|---|---|---|
| Rigid PVC (uPVC) | High stiffness, flame retardant (UL94 V-0), chemical resistance | Cable conduits, window trims, electrical raceways | ±0.12 mm |
| HDPE / LDPE | Impact strength, low friction coefficient, moisture barrier | Fluid transport tubing, guide rails, conveyor strips | ±0.18 mm |
| Polycarbonate (PC) | Optical clarity, high heat resistance, shatter resistance | LED diffusers, light fixtures, sight glasses | ±0.10 mm |
| ABS | Dimensional stability, cosmetic finish, impact resilience | Appliance trims, structural profiles, internal brackets | ±0.15 mm |
| Flexible PVC / TPE / TPU | Elastomeric recovery, variable shore hardness (55A–90A) | Gaskets, edge protectors, automotive door seals | ±0.25 mm |
Need customized compounds? We supply UV stabilizers for outdoor installations, anti-static grades for electronics manufacturing, custom Pantone/RAL color matching, and food-compliant or REACH-verified plastic materials upon engineering request.
Submit Extrusion Drawings & Specs
Upload cross-sectional 2D drawings (DWG, DXF, or PDF) along with 3D models (STEP). Our engineering team in Shenzhen evaluates die tooling feasibility, recommended draw down ratios, gate locations, and per-meter costs within 24 business hours.
Drawing Feasibility & DFM Feedback
We analyze uniform wall thickness, radius guidelines, and hollow chambers to optimize cooling rates and cut tooling expense.
Tooling + Part Unit Cost Transparency
Quotes detail die/calibrator tooling NRE fees, sample approval terms, per-meter pricing, and production lead times.
Export Crating & Global Logistics
Custom rigid packaging, bundle banding, and carton/pallet crating built specifically to protect linear profiles during air or sea transit.
