Custom Acrylic Injection Molding Services
Plasticpartsmfg provides professional acrylic (PMMA) injection molding services for engineers and product developers requiring high optical clarity, dimensional stability, and precise surface finishes. Moving components seamlessly from design validation to scalable manufacturing.
Whether you are engineering medical diagnostic devices, consumer electronics, or automotive components, our facility controls the strict thermal parameters and flow rates essential for defect-free, crystal-clear acrylic components.
Shenzhen Cleanroom Facility
PMMA Optical-grade processing up to 650T clamping force
Technical Capabilities for Acrylic Molding
Acrylic molding requires stringent control over mold temperature and injection pressure to prevent internal stress, birefringence, and surface imperfections. Our end-to-end tooling and production protocols ensure repeatability across batches.
| Capability | Specifications & Standards |
|---|---|
| Material Grades | PMMA (Acrylic), optical grade, UV-stabilized, impact-modified, transparent color tints |
| Machine Tonnage | 50 – 650 tons with closed-loop servo-hydraulic and all-electric precision control |
| Typical Tolerance | ±0.05 – 0.20 mm (subject to part geometry, thickness variations, and gate location) |
| Finishing Options | SPI-A1/A2 high-gloss, diamond polishing, Mold-Tech texture, anti-scratch coating, painting |
| Production Volume | Rapid prototyping, bridge tooling (500–5,000 pcs), and hardened multi-cavity mass production |
| Secondary Services | Ultrasonic welding, cleanroom assembly, optical bonding, protective masking, custom packaging |
Why Choose Acrylic for Your Project
Polymethyl Methacrylate delivers exceptional light transmission and mechanical stability. Partnering with Plasticpartsmfg provides dedicated processing infrastructure designed specifically for brittle, high-clarity resins.
Optical Clarity
Specific thermodynamic molding parameters provide up to 92% light transmittance, essential for lenses, light guides, and high-visibility instrument covers.
Glass-Like Surface
Advanced cavity polishing yields flawless optical surfaces directly from the tool, mitigating expensive manual buffing or post-cure finishing cycles.
Dimensional Accuracy
Shrinkage profiles (typically 0.4%–0.8%) are calculated during mold design, maintaining stable dimensions and secure snap-fits across long production runs.
Cost-Efficient Scaling
From aluminum rapid tooling for functional testing to hardened steel multi-cavity dies, our tooling architecture aligns strictly with your project volume.
Pre-tooling Moldflow & stress analysis on all incoming CAD data

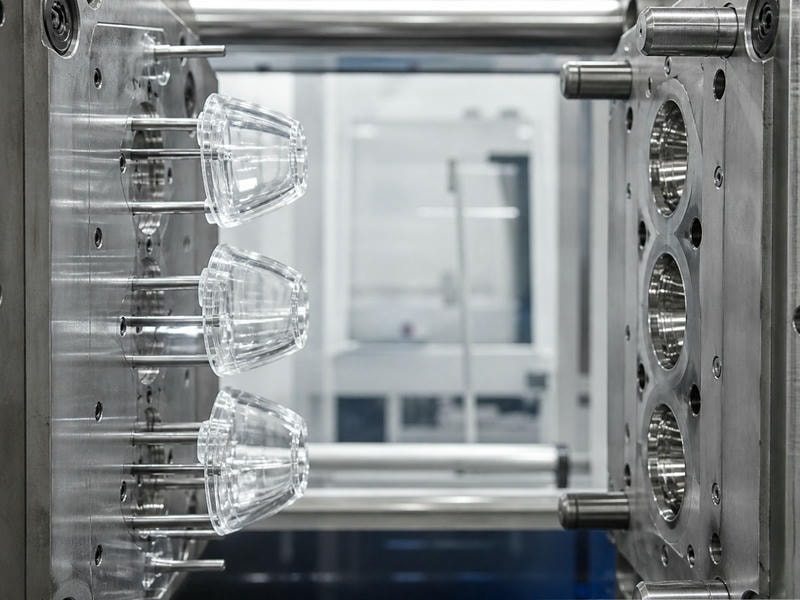

Engineering Support & DFM Feedback
To prevent visual defects and premature tool wear, our engineering team conducts comprehensive Design for Manufacturability (DFM) reviews prior to steel cutting.
Common Applications
Engineered acrylic molding supports demanding sectors where structural clarity, chemical resistance, and optical performance are essential.
High-transparency instrument panels, light diffusers, smart home control screens, and display faceplates.
Scratch-resistant finishFluid reservoirs, analytical viewing windows, cuvettes, diagnostic cassettes, and transparent housings.
USP Class VI capableInterior ambient light pipes, cluster lenses, warning light indicators, and illuminated threshold panels.
UV-grade PMMAMachinery sight glasses, transparent fluid manometers, safety barrier windows, and optical enclosures.
High dimensional rigidityQuality Control and Optical Inspection
Every acrylic component undergoes rigorous inspection protocols. Our quality assurance team uses CMM, optical comparators, and polariscope stress analyzers to verify dimensional compliance and detect internal residual stresses.
Polariscope Stress Analysis
Identifies molded-in stress concentrations that could lead to crazing or cracking under mechanical load.
Controlled Light Booth Inspection
100% visual checks for flow marks, silver streaks, micro-bubbles, and optical distortion.
Full dimensional FAI (First Article Inspection) and CMM reports are supplied with production batches.
Precision Tolerance Capability
Optic Light Transmittance
Certified Production Quality
Get a Quote for Your Acrylic Parts
Plasticpartsmfg is ready to support your injection molding project. Whether you are validating rapid prototypes or moving to multi-cavity serial tooling, our team provides fast technical review and competitive quotes.
Inquiry Checklist for Accurate Pricing:
- 3D CAD files (STEP, IGES, or Parasolid)
- 2D technical drawings highlighting critical tolerances
- Specific PMMA resin preference (e.g., optical, UV-grade)
- Expected annual volume and batch size
- Surface finish standards (SPI-A2, texture, etc.)
Email:
Facility Address:
Submit Project Requirements
Our engineering team responds with complete DFM notes within 24 hours.
