PBT CNC Machining Services
Plasticpartsmfg provides custom CNC machining services for PBT (Polybutylene Terephthalate) components. We support product development teams and procurement managers by transforming CAD designs into precision-machined PBT parts for prototyping, functional testing, and low-volume production.
Whether you require a single test component or a production run of several hundred units, our Shenzhen-based facility utilizes 3-axis, 4-axis, and 5-axis CNC equipment to meet your specific material requirements and dimensional tolerances.
PBT Machining Capabilities
We machine standard PBT and glass-filled PBT grades, ensuring the dimensional stability and mechanical properties of the material are maintained throughout the manufacturing process.
| Feature | Specification |
|---|---|
| Processes | CNC Milling, Turning, Drilling, Tapping |
| Typical Tolerance | ±0.02 mm – ±0.10 mm (dependent on geometry) |
| Max Part Size | Up to 1,000 × 600 × 500 mm |
| Material Grades | Standard PBT, Glass-Filled PBT (GF15, GF30) |
| Quantity | 1 to 5,000+ pieces |
| Input Files | STEP, STP, IGES, X_T, PDF, DWG |
Why Use PBT for CNC Machined Parts?
PBT is a semi-crystalline engineering thermoplastic known for its excellent electrical insulation properties, low moisture absorption, and chemical resistance. It is a frequent choice for components requiring high dimensional stability in diverse environmental conditions.
Electrical Insulation
High dielectric strength makes it ideal for connectors, switches, and precision housings operating in electrical environments.
Mechanical Strength
Glass-filled variations offer high stiffness, elevated rigid properties, and load-bearing capacity under tension.
Thermal Stability
Retains critical mechanical and structural properties under continuous operational exposure at elevated temperatures.
Low Friction / Wear
Low wear rates and minimal surface coefficient of friction make it suitable for gears, bearings, and sliding components.

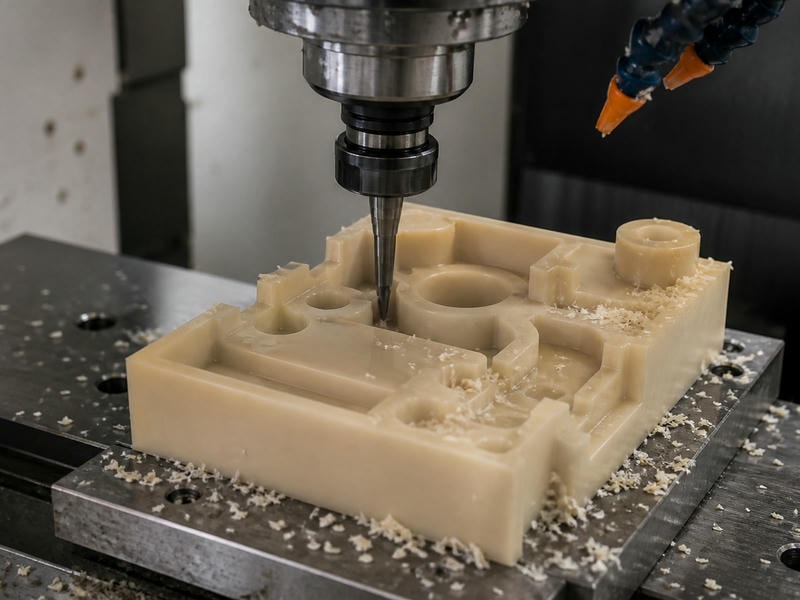

Our Machining Process for PBT
Machining PBT requires specific parameters to prevent thermal deformation and to manage the material’s characteristics, particularly when using glass-reinforced grades which are more abrasive to cutting tools.
Our engineering team applies controlled feed rates and spindle speeds to minimize internal stress and ensure clean surface finishes. We utilize sharp, high-grade carbide tooling to prevent the material from melting or "gummy" chip buildup during milling and turning operations.
Stress Relief
For parts with tight tolerances or complex geometries, we manage machining sequences to minimize residual stress.
Tooling Selection
We adjust tool geometry specifically for PBT to ensure accurate hole sizes and thread profiles.
Dimensional Inspection
Every batch undergoes dimensional verification against your provided engineering drawings and tolerances.
Industries Served
Plasticpartsmfg supports engineering and procurement teams across multiple sectors that rely on the performance characteristics of PBT:
Electronics & Electrical
Terminal blocks, connectors, sensor housings, and insulating components.
Automotive
Under-the-hood components, fuel system parts, and sensor mounts.
Industrial Automation
Precision gears, sliding blocks, and mechanical linkages.
Consumer Appliances
Housings and internal structural components requiring high heat resistance.
Secondary Operations & Finishing
Beyond basic CNC machining, we offer secondary services to provide ready-to-assemble components:
Surface Finishing
Deburring, polishing, and bead blasting for consistent aesthetic and functional surfaces.
Assembly
Bonding, hardware installation, and sub-assembly of multi-part components.
Marking
Engraving or printing part numbers, logos, or specifications directly onto the component.
Packaging
Custom protective packaging to ensure parts reach your facility without damage.
Production Flexibility
We bridge the gap between initial design validation and full-scale injection molding. Switch between options below to review batch stages:
Design Validation & Prototyping
Prove your design functionality with machined PBT parts before investing in expensive steel molds. CNC prototyping allows rapid iteration of tight-tolerance snap fits, structural housings, and insulating features directly in end-use production polymers.
Request a Quote for PBT Machining
To receive a quotation for your PBT components, please send your CAD files (STEP, X_T, or IGES) and technical drawings (PDF) to our engineering team.
Include the following details in your inquiry:
- Material specifications (e.g., standard PBT or specific glass-fill percentage).
- Required quantity.
- Dimensional tolerances and critical features.
- Surface finish or secondary operation requirements.
Email:
Manufacturing Location:
Our team will review your files for Design for Manufacturing (DFM) and provide a quote based on your specific project requirements.
