Custom HDPE Blow Molding Services
Plasticpartsmfg delivers custom HDPE blow molding solutions for businesses demanding durable, lightweight, and cost-effective hollow plastic components. Based in Shenzhen, China, we support development teams and procurement managers from initial CAD design to scalable mass production.
Manufacturing Capabilities & Engineering Specifications

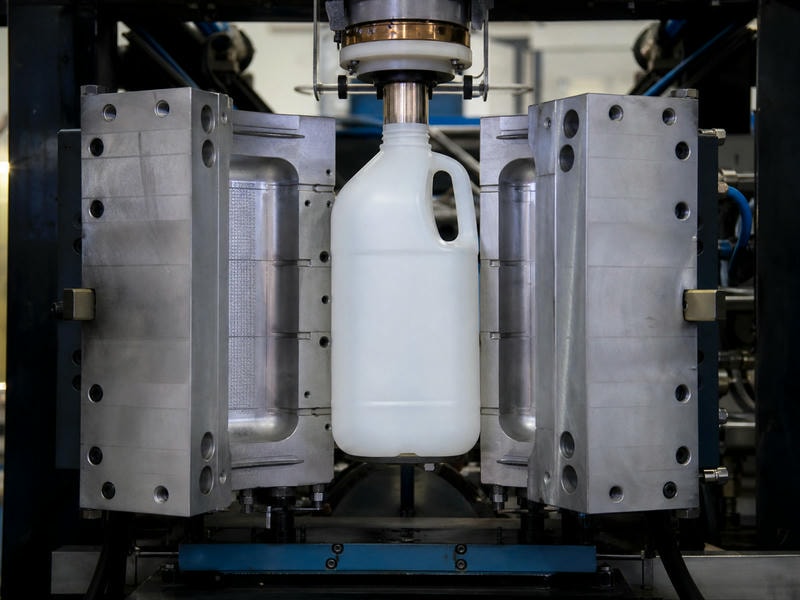

We specialize in extrusion blow molding, engineered for parts requiring uniform wall distribution and superior structural integrity. Our advanced machinery supports complex geometries from compact fluid vessels to heavy-duty industrial housings.
| Capability | Specification |
|---|---|
| Primary Process | Extrusion Blow Molding |
| Material | HDPE (High-Density Polyethylene) |
| Machine Tonnage | 50–500 tons |
| Typical Tolerance | ±0.50–1.50 mm (geometry dependent) |
| Wall Thickness | 1.0 mm – 5.0 mm |
| Production Volume | Small-batch runs to mass-production |
| Secondary Services | Trimming, drilling, assembly, custom packaging |
Tooling & Mold Precision
Extrusion blow molds operate at lower clamping pressures than injection molding, drastically reducing upfront investment while allowing rapid tooling iteration.
Why Choose HDPE for Blow Molding?
High-Density Polyethylene remains the global standard for hollow molding applications due to its high strength-to-density ratio, impact damping, and wide-ranging chemical resistance.
Chemical Resistance
Non-reactive against aggressive acids, bases, and industrial solvents, making it optimal for storage tanks, laboratory vessels, and transport reservoirs.
Impact Strength
Maintains high tensile and impact tolerance across wide temperature profiles, suitable for automotive ducts, outdoor gear, and drop-resistant containers.
Tooling Cost-Efficiency
Low pressure processing means tooling costs are considerably lower than comparable injection molding systems, especially for large hollow geometries.
Weight Optimization
Enables ultra-light structural configurations without compromising radial load-bearing capacity, lowering shipping and handling overhead.
Applications and Industry Coverage
We collaborate directly with product engineers to balance parting line placement, blow ratio calculations, and wall consistency across critical market sectors.
Industrial
Storage tanks, fluid reservoirs, chemical containment, and heavy HVAC ventilation ducting.
Automotive
Air intake lines, washer fluid reservoirs, thermal airflow channels, and interior trim shells.
Consumer Goods
Commercial bottles, utility containers, toy components, and rugged sporting equipment.
Medical & Laboratory
Specialized equipment housings, bio-waste collection vessels, and protective enclosures.
From Prototype to Mass Production
Our end-to-end framework supports programs throughout their entire product life cycle, mitigating manufacturing risks prior to scale.
DFM Engineering
Comprehensive review of STEP or IGES files to optimize part geometry, draft angles, radii, and pinch-off areas before mold cutting.
Tooling Fabrication
Precision CNC aluminum or beryllium-copper tooling designed for rapid cycle cooling and uniform wall distribution.
Bridge Production
Low-volume manufacturing runs configured for physical assembly checks, functional testing, and pilot market delivery.
Full-Scale Production
High-throughput multi-cavity production runs backed by automated deflashing, secondary operations, and inspection tracking.
Quality Control and Inspection Protocols
Every batch undergoes systematic evaluation to verify dimensional fidelity and structural behavior under pressure. Click each checkpoint to view our inspection standards.
Partner with Plasticpartsmfg
Plasticpartsmfg acts as a direct extension of your engineering and procurement teams. We deliver clear communication regarding lead times, tooling feedback, and production status.
Our engineering team will review your files and provide a comprehensive DFM analysis along with your tooling and production quotation.
Request an HDPE Blow Molding Quote
Submit your part specifications and CAD files to receive a detailed quotation within 24 hours.
